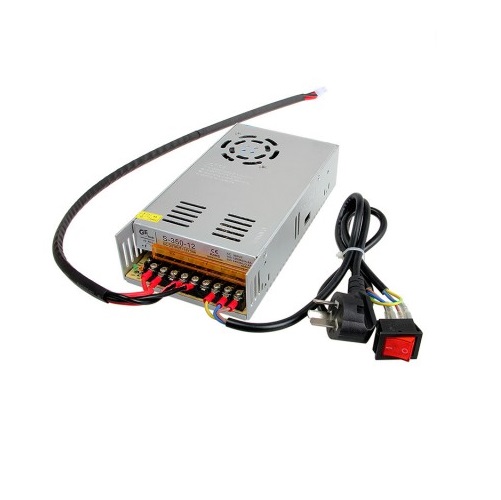

Maitinimo šaltinis 350W 12V DC 29A, S-350-12

Features:

• Suitable for CCTV, Radio, Computer project
• Manual Switch between 110V and 240V Input
• + / – 10% adjustable output voltage
• Auto on/off cooling fan
• High Efficiency, Low Temperature
• Small Size
• Built-in EMI Filter
• 100% full load burn-in test
• Short Circuit,Over Load,Over Voltage and Over temp Protection
• Auto-recovery after protection
• Size : 215 x 115 x 50 mm

Specifications:

• DC Output Voltage: 12VDC;
• Output Voltage Tolerance: ±1%;
• Output Current: 29A;
• Output Current Range: 0-29A;
• Output Power: 348W;
• Ripple And Noise: 150mVp-p;
• Input Voltage range: 90-132VAC/180-264VAC by switch 254~370VDC
• Input Frequency range: 47-63HZ
• Efficiency(Typ.): 74%
• Protection Overload: 105-135% rated output power
• Protection Over Voltage: 13.8-16.2V
• Working temp.,humidity: -10-+60℃(Refer to output load derating curve)
• Working humidity: 20~90% RH non-condensing
• Storage temp.,humidity: -20-+85℃,10~95% RH
• Vibration: 10-500HZ,2G 10 min/cycle, 60min each, along X,Y,Z axes

Note:

• All paramaters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
• Ripple & noise are measured at 20MHZ of bandwidth by using a 12′ twisted pair-wire terminated with a 0.1uf & 47uf peralel capacitor.
• Tolerance:indudes set up tolerance,line regulation and load regulation.

Package List:

• 1 x S-350-12 12V DC power supply box
• 1 x 60cm cable connected to ATX port
• 1 x 1m power supply cable with switch
