QuSpot omni LTE antena TELTONIKA RUTX11 maršrutizatoriui
QuSpot omni LTE antena TELTONIKA RUTX11 maršrutizatoriui
Kategorija: Kompiuteriniai tinklai
Gamintojas: Teltonika
Kodas: QuSpot RUTX11
Modelis: QuSpot RUTX11
Teirautis šios prekės
Aprašymas
papildoma informacija

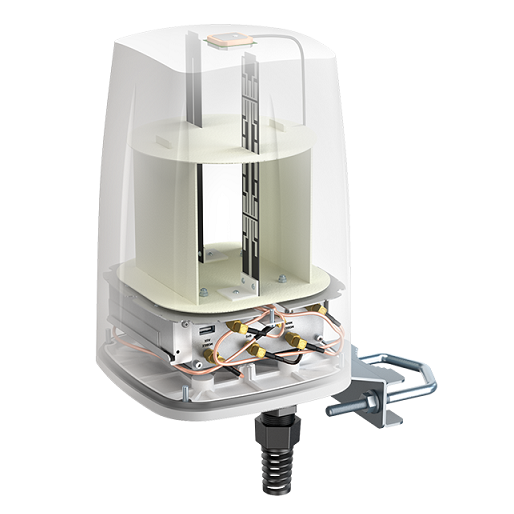

QuSpot omni LTE antenna for Teltonika Networks RUTX11 router is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It also has embedded Wi-Fi dualband 2.4 & 5 GHz omni antenna, GPS antenna and Bluetooth antenna. If you use RUTX11 with QuSpot antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
| LTE SPECIFICATION | |
| FREQUENCY | 0.694 – 0.96 GHz 1.7 – 2.2 GHz 2.2 – 2.7 GHz |
| GAIN | 2 dBi 2 dBi 4 dBi |
| VSWR | <1.70, max <2.00 <1.60, max <2.00 <1.60, max <2.00 |
| BEAMWIDTH | 360°/35° +/- 5° 360°/35° +/- 5° 360°/35° +/- 5° |
| POLARIZATION | Vertical |
| IMPEDANCE | 50 Ω |
| WI-FI SPECIFICATION | |
| FREQUENCY | 2.40 – 2.50 GHz 4.70 – 6.00 GHz |
| GAIN | 6 dBi 7 dBi |
| VSWR | <1.70, max <2.00 <1.70, max <2.00 |
| BEAMWIDTH | 360°/25° +/- 5° 360°/25° +/- 5° |
| POLARIZATION | Vertical |
| IMPEDANCE | 50 Ω |
| MECHANICAL SPECIFICATION | |
| MATERIALS | ABS, aluminum, PTFE |
| INGRESS PROTECTION | IP67 |
| DIMENSIONS | 160 x 160 x 240 mm 6.3 x 6.3 x 9.45 inch |
| WEIGHT | 1.5 kg 3.31 lbs |
| OPERATING TEMPERATURE | From -40°C to 75°C From -40°F to 167°F |
