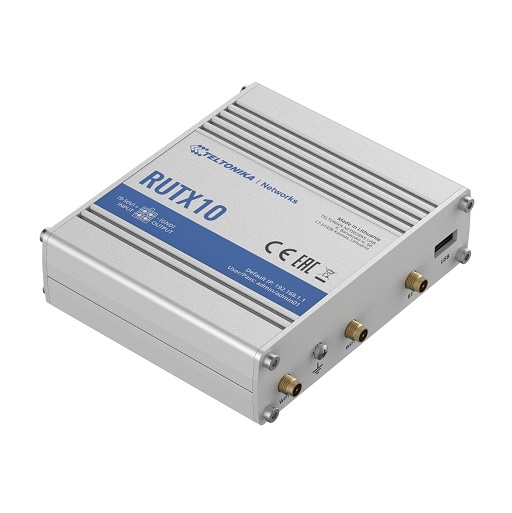

Pramoninis Ethernet maršrutizatorius TELTONIKA RUTX10

Pramoninis Ethernet maršrutizatorius TELTONIKA RUTX10

Gamintojas: Teltonika
Kodas: RUTX10
Modelis: RUTX10
Teirautis šios prekės
Atšaukti
Laiškas sėkmingai išsiųstas.
Klaida! Laiško išsiųsti nepavyko.
Aprašymas
papildoma informacija

// RUTX10 verslo maršrutizatorių specialiai sukūrėme naudojimui mažo bei vidutinio dydžio įmonėse.
// Spartusis dvigubo dažnio WiFi 5 802.11ac ryšys užtikrina ypatingai aukštą duomenų perdavimo greitį naršymui bei patikimą belaidį veikimą.
// Maršrutizatorius turi visas naujausias tinklo apsaugos funkcijas ir galimybę nuotoliniu būdu stebėti ir valdyti jūsų biuro duomenų naudojimą.
// RUTX10 širdyje slypi RutOS – visų Teltonikos maršrutizatorių operacinė sistema, sukurta reikliausioms tinklo valdymo programoms, pritaikyta lengvam bei paprastam modifikavimui pagal kiekvieno kliento specifinius poreikius.
// Sinergija tarp aparatinės ir programinės įrangos daro šį gaminį nepakeičiamu verslo sprendimuose.

  • GIGABITINIS ETERNETAS: 4 Gigabitiniai Eterneto lizdai, palaikantys iki 128 prievadais ar žymomis pajungtų VLAN
  • ĮVESTIES/IŠVESTIES JUNGTYS IR USB: Skaitmeninės įvesties/išvesties jungtys nuotoliniam stebėjimui ir valdymui bei USB 2.0 jungtis
  • WIFI IR „BLUETOOTH“: Wave-2 802.11ac dvigubo dažnio WIFI ir „Bluetooth“ LE
  • PROTOKOLAI: Daugybė palaikomų protokolų, įskaitant MQTT, Modbus TCP, BGP, GRE
  • SAUGUMAS: Ugniasienė bei daugybė VPN paslaugų, įskaitant OpenVPN, Ipsec, PPTP, L2TP ir DMVPN
  • RMS: Suderinamas su Teltonika Networks nuotoline valdymo sistema

Specifikacija

ETHERNET
WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
WIRELESS
Wireless mode 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
ESSID ESSID stealth mode
WiFi users up to 150 simultaneous connections
Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
BLUETOOTH
Bluetooth 4.0 Bluetooth low energy (LE) for short range communication
NETWORK
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL), DLNA
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forwards, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >25 service providers, others can be configured manually
Network backup VRRP, Wired and WiFi WAN options, each of which can be used as an automatic Failover
SSHFS Possibility to mount remote file system via SSH protocol
SECURITY
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN Port and tag based VLAN separation
WEB filter Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
VPN
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
MODBUS
MODBUS TCP SLAVE
ID filtering Respond to one ID in range [1;255] or any
Allow remote access Allow access through WAN
Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality
MODBUS TCP MASTER
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
Gateway Allows sending commands and receiving data from MODBUS Master trough MQTT broker
DNP3
Supported modes TCP Master, DNP3 Outstation
DATA TO SERVER
Protocols HTTP(S), MQTT, Azure MQTT, Kinesis
MONITORING & MANAGEMENT
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
FOTA Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
SYSTEM CHARACTERISTICS
CPU Quad-core ARM Cortex A7, 717 MHz
RAM 256 MB, DDR3
FLASH storage 256 MB, SPI Flash
FIRMWARE / CONFIGURATION
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA Update FW/configuration from server
RMS Update FW/configuration for multiple devices at once
Keep settings Update FW without losing current configuration
FIRMWARE CUSTOMIZATION
Operating system RutOS (OpenWrt based Linux OS)
Supported languages Busybox shell, Lua, C, C++
Development tools SDK package with build environment provided
USB
Data rate USB 2.0
Applications Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Storage formats FAT, FAT32, NTFS
INPUT/OUTPUT
Input 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events Email, RMS
I/O juggler Allows to set certain I/O conditions to initiate event
POWER
Connector 4 pin industrial DC power socket
Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Power consumption 9 W Max
PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS)
Ethernet 4 x RJ45 ports, 10/100/1000 Mbps
I/Os 1 x Digital Input, 1 x Digital Output on 4 pin power connector
Status LEDs 8 x LAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G WiFi LEDs
Power 1 x 4 pin DC connector
Antennas 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth
USB 1 x USB A port for external devices
Reset Reboot/User default reset/Factory reset button
Other 1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material Aluminium housing with DIN rail mounting option
Dimensions (W x H x D) 115 x 32.2 x 95.2 mm
Weight 355 g
Mounting options DIN rail, flat surface placement
OPERATING ENVIRONMENT
Operating temperature -40 C to 75 C
Operating humidity 10 % to 90 % non-condensing
Ingress Protection Rating IP30
