Kontrolerio plokštė Roger PR402DR-BRD

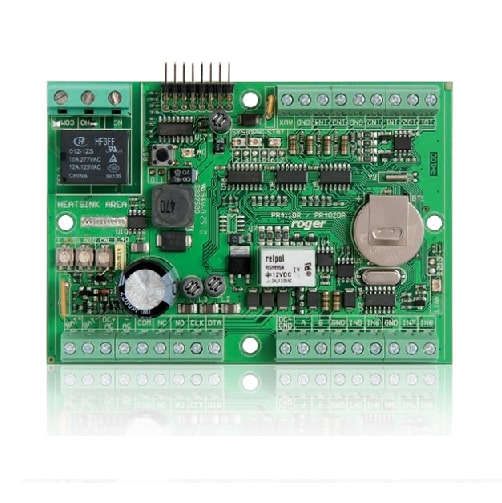

PR402DR-BRD Electronic module of PR402DR access controller
PR402DR access controllers may operate as standalone access control units or in integrated access control system with CPR32-SE network controller. In standalone mode PR402DR autonomously supervise two-way door passage and do not need to communicate with PC nor
any other equipment, events are registered in their internal buffer and time related functions are managed by built-in real time clock. Access control system based on PR402DR controllers can be managed locally through COM/USB serial port or remotely by computer network WAN/LAN. Unit is equipped with power supply module and can operate with one or two readers. PR402DR is mounted inside plastic enclosure dedicated to installation on DIN rail.

• power supply 18 VAC, 12 VDC, 24 VDC
• average current consumption 100 mA
• two way, single door access controllers
• support for Wiegand, Magstripe, PRT (Roger) readers and others
• built-in 1.5 A buffered supply module
• eight programmable NO/NC inputs
• two programmable 1 A transistor outputs
• one programmable 1.5 A relay output
• one programmable 5 A/230 VAC relay output
• RS485 communication bus
• free topology of communication bus (star or tree topology allowed)
• 4000 users
• 99 time schedules
• 250 user groups
• Built-in 32 000 event buffer
• local APB
• global APB (requires CPR in the system)
• operation with XM-2 I/O extension module
• integration with burglary system through I/Os
• door operating modes: Normal, Locked, Unlocked,
• Conditional Unlocked
• user identification: Card or PIN, Card and PIN, Card only, PIN only
• advanced access options: Two Persons, High Security and others
• quick user editing (less than 5 seconds per each controller in system)
• management through Ethernet (LAN/WAN), USB or COM
• system can be divided into separate branches (networks, subsystems)
• multiple networks doesn’t increase system programming time
• 32 floor lift control (requires XM-8 I/O extension module)
• DIN rail enclosure
• environmental conditions of operation:
– temperature from +5°C to +40°C
– humidity from 10% to 95%
• dimensions: 85.0 x 124.0 x 73.0 mm (height x width x thickness)
• weight: ≈200.0 g
• CE mark
