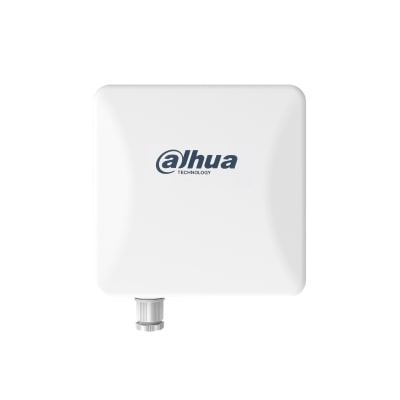

Wi-Fi lauko antena Dahua PFWB5-10N iki 5km 5GHz 20dBi MIMO

PFWB5-10N

Wi-Fi lauko antena Dahua PFWB5-10N iki 5km 5GHz 20dBi MIMO

PFWB5-10N

Kategorija: Kompiuteriniai tinklai

Gamintojas: Dahua

Kodas: PFWB5-10N

Modelis: PFWB5-10N

Teirautis šios prekės

Atšaukti

Laiškas sėkmingai išsiųstas.

Klaida! Laiško išsiųsti nepavyko.

Aprašymas

papildoma informacija

Atsisiųsti specifikaciją

Įrenginio savybės

> Integrated 5 GHz (2×2) MIMO radio
> Frequency 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
> High performance and stability
> IP-66 standards rated enclosure
> Improved noise immunity
> TDMA ensures reliable communication
> Powerful OS
> Dual firmware
> Built-in tools including Site Survey, Link Test, Antenna Alignment, Spectrum Analyzer, Ping & Trace help in configuration and debugging
> Recommended for 0~5km PTP/PTMP wireless connection(as a station in PTMP link)

Techninės Speciﬁkacijos

Modelis

DH-PFWB5-10n

Wireless

WLAN Standard

IEEE802.11 a/n

Radio Mode

MIMO 2×2

Radio Frequency Band

5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)

Transmit Power

Up to 29 dBm (country dependent)

Receive Sensitivity

Varying between -97 and -75 dBm depending on modulation

Channel Size

5,10, 20, 40 MHz

Modulation Schemes

802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)

Data Rates

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Error Correction

FEC, Selective ARQ

Duplexing Scheme

Time division duplex

Transmission Distance

0-5km (recommended), max≥7km

Antenna

Type

Integrated directional panel antenna

Gain

20dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless Operating Modes

Access point (auto WDS), access point (TDMA2), access point (TDMA3), station (WDS, TDMA2,TDMA3 ), station (ARP NAT)

Wireless Techniques

Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)

Wireless Security

WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation

Wireless QoS

4 queues prioritization on TDMA

Network Operating Modes

Bridge, router IPv4, router IPv6

Network Techniques

Routing with and without NAT, VLAN

WAN Protocols

Static IP, DHCP client, PPPoE client

Services

DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, Telnet

Tools

Site survey, link test, antenna alignment, spectrum analyzer, ping & trace

Physical

Dimensions

185mm (Length)×185mm (width )× 81mm (height )

Weight

400 g

Mounting

Combination wall / pole mount included

Power

Power Supply

12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package)

Power Source

100 – 240V AC

Power Consumption (max)

4.5W

Environmental

Operating Temperature

-30°C ~ +70°C

Humidity

0 ~ 90 % (non-condensing)

Management

System Monitoring

SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Regulatory

Certification

FCC/CE

Internal Antenna

Frequency Range

5.1 – 5.9 GHz

Gain

20 dBi

Polarization

Dual linear

Cross-pol Isolation

27dBi

VSWR

<1.8

Azimuth Beam Width (H pol)

10°

Azimuth Beam Width (V pol)

10°

Elevation Beam Width

10°

Technical Specification

Receive

Sensitivity

(dBm)

802.11n/

TDMA

(20/40

MHz)

Mbps

120

Mbps

135

Mbps

150

Mbps

-97

-95

-93

-88

-85

-81

-79

-77

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

-94

-92

-89

-85

-82

-78

-77

-75

802.11a

Mbps

-97

-95

-93

-90

-86

-82

-81

Output

Power

(dBm,

combined)

802.11n/

TDMA

(20/40

MHz)

Mbps

120

Mbps

135

Mbps

150

Mbps

120

Mbps

180

Mbps

240

Mbps

270

Mbps

300

Mbps

802.11a

Mbps
