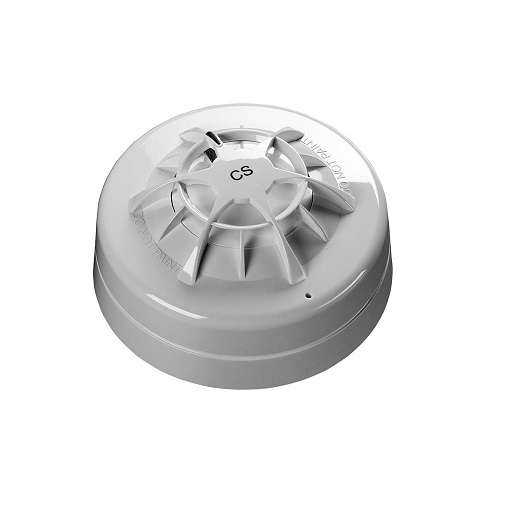

Temperatūros jutiklis 24V Apollo Orbis ORB-HT-11006-APO

General
Applications: B&Bs/guest houses, Car parks/loading bays, Dusty environments, Restaurants, Retail, Small to medium buildings.
Fire Type: Fast burning, flaming fires
Performance
Chamber Type: Chevron
Heat Classification: CS
Electrical
Maximum Power-Up Time: <20 seconds
Quiescent Current: 95μA
Power Current: Tested At 24V dc
Polarity: L1 & L2 are polarity sensitive
Minimum ‘Detector Active’ Voltage: 6V
Holding Voltage: 5 to 33V
Minimum Voltage To Light Alarm LED: 5V
Alarm Reset Time: 1s
Alarm Load: 600Ω
Environmental
Humidity: 0% to 98% (no condensation or icing)
Operating Temperature: -40 to 70°C
Conformance
Approvals: VdS, FG, BOSEC, CPR
Mechanical
Weight: 70g
Colour: White
Materials: Housing Polycarbonate
Product Diameter: 97mm
