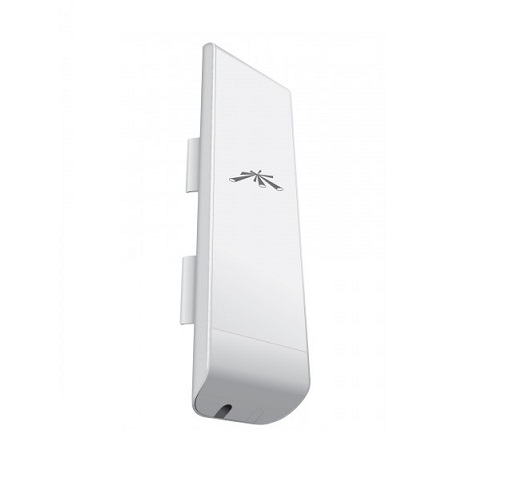

Prieigos taškas 5GHz, 150Mbps, 15Km, 2xLan, Ubiquiti Nanostation Airmax NSM5

Ubiquiti NS5M – a base unit designed to create point-to-multipoint connections in the 5 GHz band and the 802.11b / g / n standard. Using two radio paths (Atheros 2Tx2Rx MiMo Technology) it is able to provide a connection speed of up to 300Mbps, corresponding to 150 Mbps of real TCP / IP speed.

The device is powered by passive PoE (power supply included).
The Ubiquiti Networks NS5M MiMo device with an integrated 15dBi antenna is a professional fully integrated 5MHz MiMO wireless system solution operating as a subscriber terminal with a range of several kilometers. NS5M is therefore an excellent solution to the “last mile problem” enabling a simple way to bring 5MHz MiMo system characterized by high capacity directly to the Subscriber.

On the rear panel of the antenna there are 4 LEDs, which present the current RSSI level set by software for each diode.

Specifications

• – Processor Specs: Atheros MIPS 24KC, 400MHz
• – Memory Information: 32MB SDRAM, 8MB Flash
• – Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
• – RoHS Compliance: YES
• – Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
• – Operating Temperature: -30C to +80C
• – Weight: 0.4kg
• – Enclosure Size: 29.4 cm x 8 cm x 3cm
• – Mounting Kit: Pole Mounting Kit included
