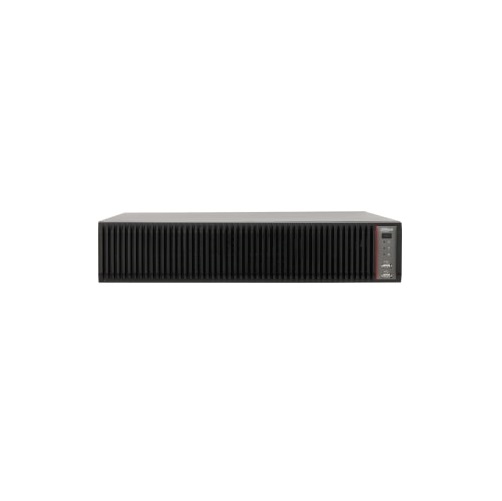

Vaizdo įrašymo įrenginys DAHUA IVSS7008 128 kanalų 2U

Vaizdo įrašymo įrenginys DAHUA IVSS7008 128 kanalų 2U

Gamintojas: Dahua
Kodas: IVSS7008
Modelis: IVSS7008
Teirautis šios prekės
Atšaukti
Laiškas sėkmingai išsiųstas.
Klaida! Laiško išsiųsti nepavyko.
Aprašymas
papildoma informacija
Atsisiųsti specifikaciją

Pagrindinės savybės

> Industry embedded micro-controller
> Max 512Mbps incoming bandwidth
> 128-channel IP video access
> Supports RAID 0/1/5/6/10
> 3 HDMI/2 VGA video output

Techniniai parametrai

System

Main Processor

Industry embedded micro-controller

Operating System

Embedded Linux OS

Operation Interface

WEB (PCAPP), local GUI

AI Applications

AI by Camera

Supports AI by camera function: Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), perimeter protection

Perimeter Protection

Perimeter Function (AI by Camera)

64-channel

Human Face Detection

Human Face Properties

Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard

Face Detection Performance (AI by Camera) (Channel Number)

64-channel

ANPR

Plate Database Capacity

Max. 50 plate databases with 3 hundred thousand plate numbers in total
Supports black list/white list

Plate Detection Performance

32-channel

Video Metadata

Human Body Properties

Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella

Vehicle Properties

Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place

Non-motor Vehicle Properties

Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet

Metadata Performance (AI by Device) (1080P) (Channel Number)

N/A

Metadata Performance (AI by Camera) (Channel Number)

32-channel

Video Parameters

Remote Connection

128

Network Bandwidth

Incoming bandwidth: 512Mbps
Recording bandwidth: 400Mbps
Outgoing bandwidth: 512Mbps

Resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

5-channel 12MP (20fps)/6-channel 12MP (15fps)/5-channel 8MP (30fps)/10-channel 8MP (15fps)/6-channel 6MP(30fps)/8-channel 5MP(30fps)/9-channel 5MP (25fps)/10-channel 4MP (30fps)/15-channel 4MP (20fps)/16-channel 3MP (25fps)/10-channel 1080P (60fps)/20-channel 1080P (30fps)/30-channel 720P (30fps)

Video Output

2-channel VGA output, 3-channel HDMI output, VGA 1/HDMI 1 outputs the same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output

Multi-screen Display

Customized display. Max. 36-channel local live view. Max.16-channel PCAPP live view

Third-party Support

Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco,Canon, Samsung

Compression

Video Compression

Smart H.265+/Smart H.264+/H.265/H.264

Audio Compression

G.711A/G.711U/PCM/G726

Network

Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone

DMSS

Interoperability

ONVIF(Profile S, T and G), CGI, SDK

Browser

Chrome, PCAPP, IE9 or higher, Firefox

Network Mode

NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc

Record Playback

Multiple-channel Playback

Max. 16-channel playback

Record Search

Search video detection/manual record/IO alarm/intelligent event/all record file

Storage Medium

Internal HDD

Backup Method

HDD, peripheral USB storage device

Playback Function

1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play.

2. Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off

Storage

HDD Group

8

RAID

RAID0/1/5/6/10

Storage Pool

N/A

Alarm

General Alarm

Motion detect, tampering, local alarm

Anomaly Alarm

IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction

Intelligent Alarm

Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle),perimeter protection (intrusion, tripwire),plate recognition

Alarm Linkage

Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email

Peripheral Interface

Audio Input

1-channel, RCA port (reserved)

Audio Output

2-channel, RCA port , speaker output, audio linkage output

Alarm Input

16-channel

Alarm Output

8-channel

Internal HDD

8 slots, SATA3.0. Max.10T/HDD

eSATA

1 port

SAS

N/A

RS-232

1 port, for debug or transparent COM data

RS-485

1 port, control peripheral PTZ and so on. Supports various protocols

USB

4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 port a the rear panel

HDMI

3 ports; support 4K output

VGA

2 ports

Network

4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports

Power

1 port

PoE

N/A

General Parameters

Power Supply

100V AC–240V AC 50±2%Hz

Power Consumption

40W (Without HDD, idling)

Net Weight

8.55 Kg (18.85 lb)

Gross Weight

10.9 Kg (24.03 lb)

Dimensions

Chassis: 439.7 mm × 446.2 mm × 89 mm

(17.31 ” × 17.57 ” × 3.50 “)
Max. size: 481.7 mm (with hanger) × 446.2 mm × 90.8
mm (with feet mat) (18.96 ” × 17.57 ” × 3.57 “)

Packaging Dimensions

With Packaging: 562 mm × 599 mm × 235 mm

(22.13 ” × 23.58 ” × 9.25 “)
Protection box: 491 mm × 584 mm × 631 mm

(19.33 ” × 22.99 ” × 24.84 “)

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)/10%RH–90% RH

Storage Temperature

0 °C to +40 °C (+32 °F to +104 °F)/30%RH–85% RH

Operating Humidity

10%–90%

Storage Humidity

30%–85%

Operating Altitude

5000 m (16404.20 ft)

Installation Mode

Desktop/rack

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
UL 60950-1
