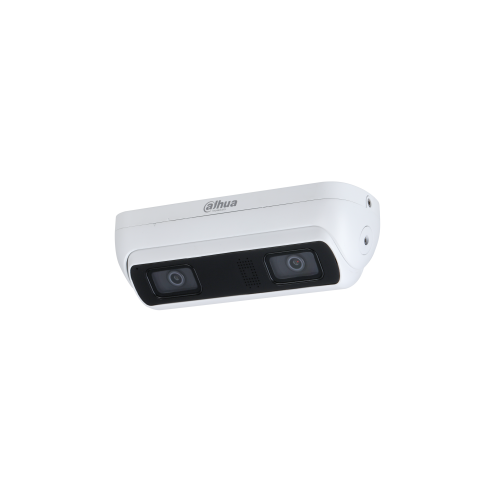

IP vaizdo kamera žmonių srauto skaičiavimui DAHUA IPC-HDW8341X-3D-0280B/-0360B-S2 3MP

IP vaizdo kamera žmonių srauto skaičiavimui DAHUA IPC-HDW8341X-3D-0280B/-0360B-S2 3MP

Kategorija: Vaizdo kameros
Gamintojas: Dahua
Kodas: IPC-HDW8341X-3D
Modelis: IPC-HDW8341X-3D
Teirautis šios prekės
Atšaukti
Laiškas sėkmingai išsiųstas.
Klaida! Laiško išsiųsti nepavyko.
Aprašymas
papildoma informacija
Atsisiųsti specifikaciją

Pagrindinės savybės

> 3MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs max. 3MP (2048 × 1536) @30 fps
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> People counting: Queue management, people counting in area, entry/ exit number counting, and it can output daily/monthly/yearly report
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 256 G
> Micro SD card, built-in Mic and speaker. Siren active deterrence, built- in 8 voices, and user can import custom voices.
> 12V DC/PoE power supply
> IP67, IK10 protection

Techniniai parametrai

Camera
Image Sensor 1/2.8”3Megapixel progressive CMOS
Max. Resolution 2048 (H) × 1536 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 20 m (IR) (65.6 ft) (IR LED)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Tilt: 0°–70°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture 2.8 mm: F1.6
3.6 mm: F1.6
Field of View 2.8 mm: Horizontal 96° × Vertical 70° × Diagonal 128°
3.6 mm: Horizontal 79° × Vertical 57° × Diagonal 104°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.3 m (4.3 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 44.8 m

(147 ft)

17.9 m

(58.7 ft)

9.0 m

(29.5 ft)

4.5 m

(14.8 ft)

3.6mm 64.0 m

(210.0 ft)

25.6 m

( 84.0 ft)

12.8 m

(42.0 ft)

6.4 m

(21.0 ft)

Smart Event
IVS Abandoned object; missing object
Professional, intelligent
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), loitering detection, people gathering, parking detection
Face Detection Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 5 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, surprise), mask, beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting
People Counting Support tripwire number counting; people counting in area, and displaying and outputting yearly/monthly/weekly/daily reports.
Support queue management, and displaying and outputting yearly/monthly/weekly/daily reports.
Support 4 tripwire rule configuration, people counting in 4 areas, and 4 queue managements.
Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.264+
Smart H.265+
Video Frame Rate Main stream: 3MP (1–25/30 fps)
Sub stream: D1 (1–25/30 fps)
Third stream: 2MP (1–25/30 fps)
Fourth stream: 2MP (1–25/30 fps)
Fifth stream: D1 (1–25/30 fps)
Stream Capability 5 streams
Resolution 3M (2048 × 1536); 1080p (1920 × 1080); 720p ( 1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); 640 × 480 (VGA)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–17664 kbps
H.265: 3 kbps–17664 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Built-in Speaker Yes
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P; RTMP
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE9; IE11; FireFox; Chrome
Management Software Smart PSS; DSS; NVR; IVSS
Mobile Phone IOS; Android
Certification
Certification CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 2 channels (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channels in: 5mA 3V–5V DC
Alarm Output 2 channels out: 1,000mA 30V DC/500mA 50V DC
Power
Power Supply 12V DC/PoE
Power Consumption Basic power consumption: 3.5W (12V DC); 4.4W (PoE)
Max. power consumption (ICR switch + IR full intensity + WDR + Intelligent functions enabled): 9.1W (12V DC); 10.6W (PoE)
Environment
Operating Conditions -40°C to +60°C/Less than 95% RH
Storage Temperature –40°C to +60°C (–40°F to +140°F)
Ingress Protection IP67; IK10
Structure
Casing Metal
Dimensions 204.0 mm × 78.0 mm × 61.5 mm

(8.0″ × 3.1″ × 2.4″) (L × W × H)

Net Weight 0.81 kg (1.8 lb)
Gross Weight 1.19 kg (2.6 lb)
