UniBus 2 kanalų RS232/RS485 UART jungtis, Inner Range Integriti INTG-996520PCB&K

UniBus 2 kanalų RS232/RS485 UART jungtis, Inner Range Integriti INTG-996520PCB&K

Kategorija: Apsaugos sistemos
Gamintojas: Inner range
Kodas: INTG-996520PCB&KIT
Modelis: INTG-996520PCB&K
Teirautis šios prekės
Atšaukti
Laiškas sėkmingai išsiųstas.
Klaida! Laiško išsiųsti nepavyko.
Aprašymas
papildoma informacija
Atsisiųsti specifikaciją

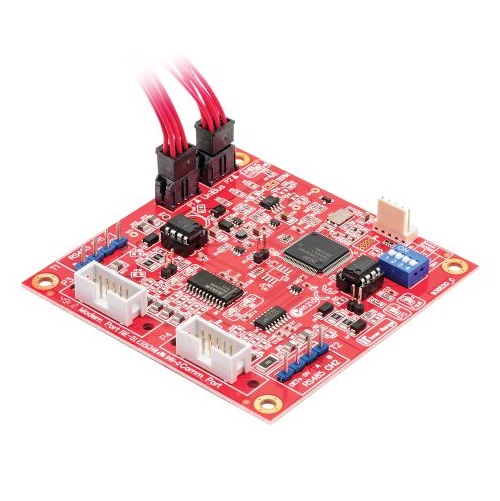

The UniBus 2 Port UART provides 2 high speed, software configurable, Serial Ports allowing connection of peripheral serial devices. Up to 4 UniBus UART Boards may be connected to an Integriti Controller. DIP switch options allow each Port to be configured for RS-232 or RS-485 operation.

The UniBus 2 Port UART is designed for installation within the same enclosure as its UniBus host module and the board is connected directly to the host module or another UniBus Board via the UniBus cable supplied. Specific RS-232 cables are available separately for the connection of a Computer, Modem or other serial devices including the Inner Range GSM modem or Multipath IP STU.

Features

  • 2 Software configurable UART Ports
      • – Channel 1 – RS-232 Modem / RS-485 Port
      • – Channel 2 – RS-232 Comm / RS-485 Port
  • DIP switch addressable module number 1, 2, 3 or 4
  • DIP switch selectable CH1/CH2 mode, RS-232 or RS-485
  • LED indication of CH1 & CH2 RX & TX activity
  • LED UniBus status indicator
  • 2 LED system status / fault indicators
  • UniBus loop-through connectors
  • Over-The-Wire firmware upgradable
  • Integriti “C” size footprint 94 x 94mm
  • Can be installed above other “C” size PCB’s**
  • A Snap off strip is included to allow installation above Integriti “B” size PCB’s**

**35mm standoff kit required – Part Number 999009

Host Module Compatibility

The UniBus UART is compatible with the following UniBus Host Modules and connects to the host module via a UniBus patch cable.

UniBus In-Cabinet Expansion

UniBus Devices are designed for installation within the same tamper protected enclosure as the UniBus host module. A UniBus host can interface a maximum of six UniBus devices in any combination, provided they are all within the intended functionality of the host module.

UniBus is an innovative in-cabinet bus which allows the connection of Expansion devices, Communications devices and Door & Reader expansion devices on a common Plug & Play bus. UniBus is built on the highly reliable CANBus technology and replaces the need for ribbon cables and specialised connectors.

UniBus Compatibility  Chart

 Unibus Device
Compatibility Guide
 UniBus Host Module
ISC IAC 8 Zone Expander  ILAM
UniBus
Device
 8 Zone Expander 2  0 3 0
 8 Relay Expander 4  4 4 2
 2 Door / 2 Reader Expander 0  3 0 3
 16 Floor Lift Interface 6 6 6 6
 RS-232/RS-485 UART 4 4 0 0
 Analogue Expander 6 0 6 0
 2nd Network Interface Card 1 1 0 0
