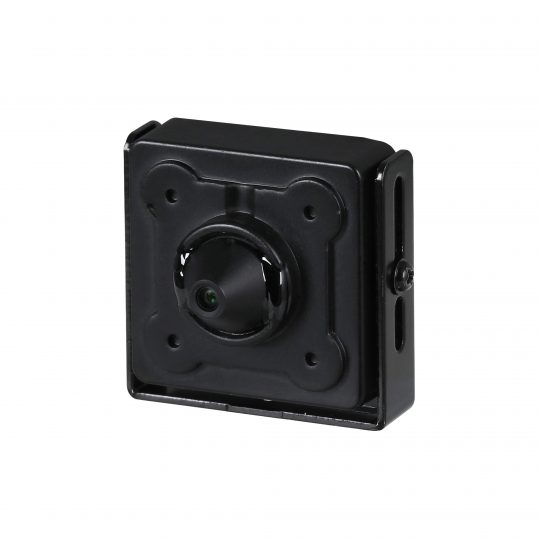

HD-CVI mikrokamera Dahua HAC-HUM3201BP-0280P

HD-CVI mikrokamera Dahua HAC-HUM3201BP-0280P

Gamintojas: Dahua
Kodas: HUM3201BP-0280P
Modelis: HAC-HUM3201BP-0280P
Teirautis šios prekės
Atšaukti
Laiškas sėkmingai išsiųstas.
Klaida! Laiško išsiųsti nepavyko.
Aprašymas
papildoma informacija
Atsisiųsti specifikaciją

> Starlight, 120dB true WDR, 3DNR
> Max 30fp@1080P
> HD and SD output switchable
> 2.8mm fixed lens
> DC12V
> 2MP



Camera
Image Sensor 1/2.8″ CMOS
Effective Pixels 1937(H)×1097(V), 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination 0.05Lux/F2.4 (Color), 0.005Lux/F2.4 (B/W), 30IRE
S/N Ratio More than 65dB
IR Distance N/A
IR On/Off Control N/A
IR LEDs N/A
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F2.4
Angle of View H: 92°(103° )
Focus Control N/A
Close Focus Distance 600mm (500mm)

23.6” (19.7”)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect 25px/m

(8px/ft)

2.8mm: 42m(138ft)

3.6mm: 51m(167ft)

Observe 63px/m

(19px/ft)

2.8mm: 17m(55ft)

3.6mm: 20m(67ft)

Recognize 125px/m

(38px/ft)

2.8mm: 8m(28ft)

3.6mm: 10m(33ft)

Identify 250ppm

(76px/ft)

2.8mm: 4m(14ft)

3.6mm: 5m(17ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 180°

Rotation: N/A

Video
Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output / CVBS

video output (Can switch)

Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D / 3D
White Balance Auto / Manual
Smart IR N/A
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 1.2W (12V DC)
Environmental
Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance N/A
Construction
Casing Aluminium
Dimensions 35.5mm×29.9mm×22.1mm (1.40″×1.18″×0.87″)
Net Weight 0.09kg (0.20lb)
Gross Weight 0.12kg (0.27lb)
