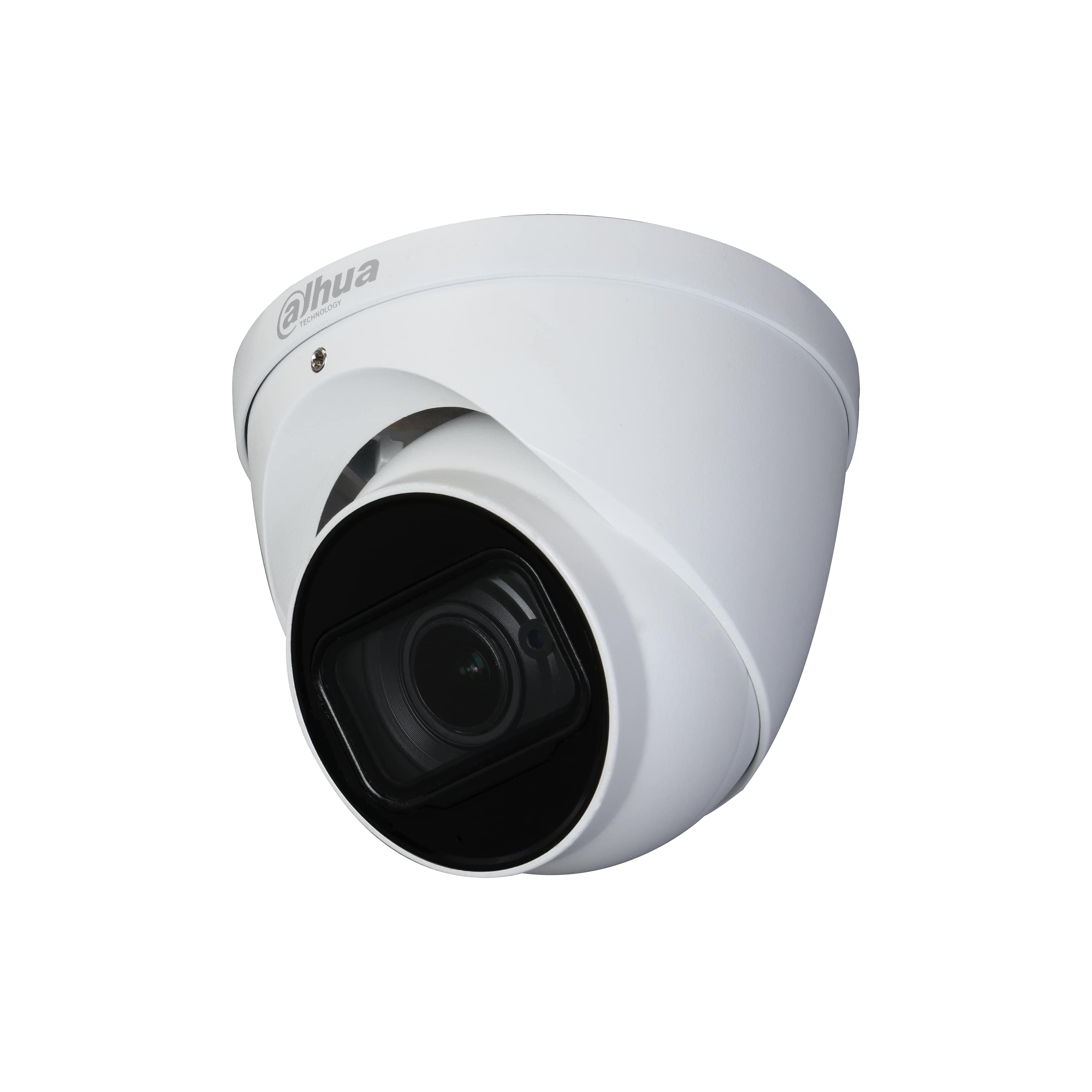

HD-CVI vaizdo kamera Dahua HAC-HDW2241T-Z-A-27135 2MP IR60

Kategorija: Vaizdo stebėjimo sistemos

Gamintojas: Dahua

Kodas: HAC-HDW2241TP-Z-A

Modelis: HAC-HDW2241T-Z-A-27135

Teirautis šios prekės

Atšaukti

Laiškas sėkmingai išsiųstas.

Klaida! Laiško išsiųsti nepavyko.

Aprašymas

papildoma informacija

Atsisiųsti specifikaciją

Pagrindinės savybės

> Starlight, 120dB True WDR, 3DNR
> Max. 30fps@1080P
> HD/SD output switchable
> Audio in interface, built-in mic
> 2.7-13.5mm motorized lens
> Max. IR length 60m, Smart IR
> IP67, DC12V±30%

Techniniai parametrai

Camera

Image Sensor

1/2.8″ CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination

0.004Lux/F1.6, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 60m (197eet)

IR On/Off Control

Auto / Manual

IR LEDs

Lens

Lens Type

Motorized lens / Fixed iris

Mount Type

Board-in

Focal Length

2.7-13.5mm

Max Aperture

F1.6

Angle of View

H: 108.7°~28.7°

Focus Control

Auto / Manual

Close Focus Distance

200mm

7.87”

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D/3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Wide

Tele

Detect

25px/m (8px/ft)

44m(144ft)

153m(502ft)

Observe

63px/m (19px/ft)

18m(59ft)

61m(200ft)

Recognize

125px/m (38px/ft)

9m(30ft)

31m(102ft)

Identify

250px/m (76px/ft)

4m(13ft)

15m(49ft)

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1ch in & Built-in Mic

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 5.4W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

Φ122mm×107mm (Φ4.8″×4.2″)

Net Weight

0.59kg (1.30lb)

Gross Weight

0.69kg (1.52lb)
