Mini elektromagnetinė sklendė 51.1.00B reversinė O&C siaura

• 9-16V DC
• mini
• mažasrovė
• be atminties
• sklendė atrakinama ir išlieka atrakinta kol įjungtas maitinimas
• yra mechaninė svirtelė rankiniam sklendės atrakinimui
• Pagaminta Ispanijoje

Tinkančios plokštelės:

• Trumpos – F.27, F.28
• Ilgos – F.22, F.23, F.26, F.29, F.30
• Kampinės – F.24, F.25

Functional description:

Allows mechanical adjustment of the lever to the UNLOCKED or LOCKED position. Suitable for continuous passage without el. for an indefinite period of time. By moving the lever to the LOCKED position, it works just like the standard
el. opener ..

This two-sided electric opener is only 16 mm wide and is one of the smallest on the market and fits perfectly into narrow aluminum, wood and plastic profiles. Thanks to its small size and high durability, it can be used with any lock.
The radial latch rotates inside the electric opener mechanism so that the doorframe does not need to be cut during installation.
All models are equipped with electronic protection to prevent damage to the
connected access control system. This is also an advantage for installers because the power connection is not polarized.
With a wide range of functions and voltages, these openers will allow you to open the door quickly with low current loads.

Specifications
• Guaranteed durability: 300,000 cycles (120N AC side load)
• Coil Properties: J 6-12 V AC / DC <1min, 8.5 Ohm 0.84A at 9V AC
• Max. side load AC: 160 N
• Max. side load DC: 10 N
• Burglary resistance: 5.000 N
• Dynamic force: 33 ft lbf
• Operating temperature range: -15 ° C / + 40 ° C
• Body material: zinc
• Latch material: zinc
• Latch adjustment: 2 mm
• Latch depth: 5.4 mm
• Patented opening system
• 3-year warranty
• In accordance with 2004/108 / ES (EN 55014)
• Corrosion resistant to UNI ISO 9227
• Current: 0.5 – 1.0 A
• Fault threshold: 450 kg
• Fail time: 300000 cycles

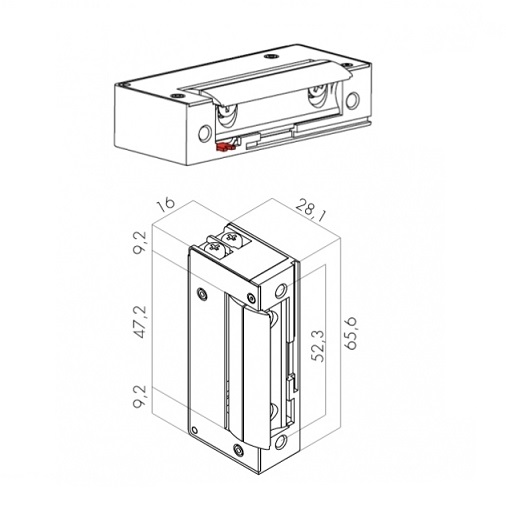

• Dimensions: (W x D x H) 16 x 28.1 x 65.6 mm (with 72.7 mm)
• Distance between tongue and bolt: 12 mm
